What is the function of Cbb21 in motor control circuits?

In the realm of motor control circuits, the Cbb21 capacitor plays a pivotal role. As a reputable Cbb21 supplier, I've witnessed firsthand the significance of this component in various applications. In this blog, I'll delve into the functions of Cbb21 in motor control circuits, shedding light on its importance and why it's a preferred choice for many engineers and manufacturers.

Understanding Cbb21 Capacitors

Before we explore its functions, let's briefly understand what Cbb21 capacitors are. Cbb21 is a type of metallized polypropylene film capacitor. These capacitors are known for their excellent electrical properties, such as low loss, high insulation resistance, and good self - healing characteristics. They are available in a wide range of capacitance values and voltage ratings, which makes them suitable for diverse applications.

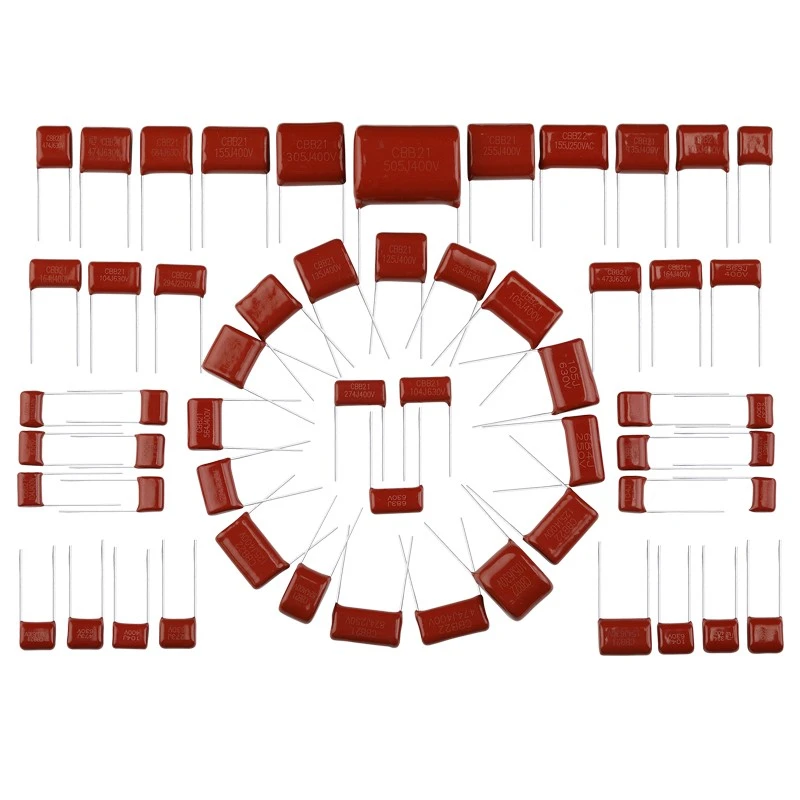

For instance, you can find CBB21 - Film Capacitor 100V for applications where lower voltage requirements are needed. On the other hand, the 335j 400v Capacitor is designed to handle higher voltage levels. And if your application calls for a 200V rating, the CBB21 - Film Capacitor 200V is an ideal option.

Functions of Cbb21 in Motor Control Circuits

1. Phase Shifting

One of the primary functions of Cbb21 capacitors in motor control circuits is phase shifting. In single - phase induction motors, a rotating magnetic field is required to start and run the motor. However, a single - phase power supply can only produce an alternating magnetic field, which is not sufficient to create a self - starting torque.

By adding a Cbb21 capacitor in series with the auxiliary winding of the motor, a phase shift is introduced between the current in the main winding and the current in the auxiliary winding. This phase shift creates a rotating magnetic field, which provides the necessary starting torque for the motor. Once the motor reaches a certain speed, the capacitor may be disconnected in some cases, but in others, it remains in the circuit to improve the motor's performance.

The value of the Cbb21 capacitor used for phase shifting is crucial. If the capacitance is too small, the phase shift will be insufficient, resulting in a weak starting torque. Conversely, if the capacitance is too large, it can cause excessive current in the auxiliary winding, leading to overheating and potential damage to the motor.

2. Power Factor Correction

Power factor is an important parameter in electrical systems. It represents the ratio of real power (the power that does useful work) to apparent power (the product of voltage and current). A low power factor means that a significant portion of the electrical energy is being wasted in the form of reactive power.

In motor control circuits, motors are often inductive loads, which have a low power factor. Cbb21 capacitors can be used to correct the power factor. When a capacitor is connected in parallel with the motor, it supplies reactive power to the motor, reducing the reactive power drawn from the power supply. This not only improves the overall power factor of the system but also reduces the current flowing through the power lines, resulting in lower energy losses and reduced electricity bills.

For industrial applications where large numbers of motors are used, power factor correction using Cbb21 capacitors can lead to substantial cost savings over time. Additionally, it helps to comply with power quality regulations, as many utility companies impose penalties for low power factor.

3. Filtering

Cbb21 capacitors also serve as filters in motor control circuits. Electrical noise and harmonics can be generated in the circuit due to the switching action of the motor's control devices, such as relays and contactors. These noise and harmonics can interfere with the normal operation of the motor and other sensitive electronic components in the system.

A Cbb21 capacitor can be used to filter out these unwanted frequencies. By connecting the capacitor across the power supply or at specific points in the circuit, it can absorb the high - frequency noise and harmonics, providing a cleaner and more stable power supply to the motor. This helps to improve the reliability and performance of the motor, as well as reducing the risk of electromagnetic interference (EMI) to other equipment in the vicinity.

4. Voltage Regulation

In some motor control circuits, Cbb21 capacitors can be used for voltage regulation. When the motor starts or stops, there can be significant voltage fluctuations in the circuit. These voltage fluctuations can affect the performance of the motor and other components in the system.

A Cbb21 capacitor can act as a buffer to store and release electrical energy, helping to smooth out the voltage variations. During voltage dips, the capacitor releases its stored energy to maintain a relatively stable voltage across the motor. Conversely, during voltage surges, the capacitor absorbs the excess energy, protecting the motor from overvoltage damage.

Advantages of Using Cbb21 in Motor Control Circuits

1. High Reliability

Cbb21 capacitors are known for their high reliability. The self - healing property of metallized polypropylene film ensures that if a breakdown occurs in the dielectric of the capacitor, the metal layer around the breakdown point evaporates, isolating the fault and preventing further damage. This makes Cbb21 capacitors suitable for long - term use in motor control circuits, where reliability is of utmost importance.

2. Wide Temperature Range

They can operate over a wide temperature range. This is particularly important for motor control circuits, as motors can generate a significant amount of heat during operation. Cbb21 capacitors can maintain their electrical properties even at high temperatures, ensuring stable performance in harsh environments.

3. Low Losses

Cbb21 capacitors have low dielectric losses, which means that they dissipate less energy in the form of heat. This not only improves the efficiency of the motor control circuit but also reduces the risk of overheating, extending the lifespan of the capacitor and other components in the circuit.

Conclusion

In conclusion, Cbb21 capacitors play a vital role in motor control circuits. Their functions of phase shifting, power factor correction, filtering, and voltage regulation are essential for the proper operation and performance of motors. As a Cbb21 supplier, I understand the importance of providing high - quality capacitors that meet the specific requirements of motor control applications.

If you are in the market for Cbb21 capacitors for your motor control circuits, I encourage you to reach out for a detailed discussion. Whether you need assistance in selecting the right capacitance value and voltage rating or have any other questions about our products, I'm here to help. Let's work together to ensure the optimal performance of your motor control systems.

References

1. Chapman, S. J. (2012). Electric Machinery Fundamentals. McGraw - Hill Education.
2. Fitzgerald, A. E., Kingsley, C., & Umans, S. D. (2003). Electric Machinery. McGraw - Hill Education.
