How does Cbb21 work?

As a supplier of Cbb21 capacitors, I am often asked about how these components work. In this blog post, I will delve into the inner workings of Cbb21 capacitors, exploring their construction, principles of operation, and applications. By the end of this article, you will have a comprehensive understanding of Cbb21 capacitors and why they are a popular choice in various electronic circuits.

Construction of Cbb21 Capacitors

Cbb21 capacitors belong to the family of metalized polypropylene film capacitors. The construction of a Cbb21 capacitor is quite intricate and designed to offer high performance and reliability. At its core, a Cbb21 capacitor consists of a thin polypropylene film that is metalized on one or both sides. This metalized layer serves as the electrodes of the capacitor.

The polypropylene film is chosen for its excellent electrical properties. It has a low dielectric loss, which means that it dissipates very little energy as heat when an alternating current (AC) passes through the capacitor. This is crucial for applications where efficiency is a priority. Additionally, polypropylene has a high dielectric strength, allowing the capacitor to withstand relatively high voltages without breaking down.

The metalized layer on the polypropylene film is typically made of aluminum or zinc. These metals are chosen for their good conductivity and compatibility with the polypropylene film. The metalized layer is deposited onto the film using a vacuum deposition process, which ensures a uniform and thin layer of metal.

The capacitor is then wound into a cylindrical shape, with the metalized film acting as the electrodes and the polypropylene film as the dielectric. To protect the internal components, the wound capacitor is usually encapsulated in a plastic case filled with a resin material. This provides mechanical protection and also helps to prevent moisture and other contaminants from entering the capacitor.

Principles of Operation

To understand how a Cbb21 capacitor works, we need to first understand the basic concept of a capacitor. A capacitor is an electronic component that stores electrical energy in an electric field. It consists of two conductive plates separated by a dielectric material. When a voltage is applied across the plates, an electric field is created between them, and charge accumulates on the plates.

In the case of a Cbb21 capacitor, when a voltage is applied across the metalized electrodes, the electric field causes electrons to move from one electrode to the other through the dielectric (the polypropylene film). However, since the polypropylene film is an insulator, the electrons cannot pass through it directly. Instead, they accumulate on the electrodes, creating a charge separation.

The amount of charge that a capacitor can store is determined by its capacitance, which is measured in farads (F). The capacitance of a Cbb21 capacitor depends on several factors, including the area of the electrodes, the distance between them, and the dielectric constant of the polypropylene film.

One of the key features of Cbb21 capacitors is their ability to handle AC signals. When an AC voltage is applied to a Cbb21 capacitor, the direction of the electric field changes periodically. As a result, the charge on the electrodes also changes direction, and the capacitor alternately charges and discharges. This property makes Cbb21 capacitors suitable for use in AC circuits, such as power supplies, audio systems, and motor control circuits.

Applications of Cbb21 Capacitors

Cbb21 capacitors are widely used in a variety of electronic applications due to their excellent electrical properties and reliability. Some of the common applications include:

• Power Supplies: In power supply circuits, Cbb21 capacitors are used for filtering and decoupling. They help to smooth out the DC voltage output by removing any ripple or noise that may be present. For example, in a switch - mode power supply, a Cbb21 capacitor can be used in the input filter stage to reduce electromagnetic interference (EMI) and improve the power factor.
• Audio Systems: Cbb21 capacitors are often used in audio circuits for coupling and bypassing. In a speaker crossover network, for instance, Cbb21 capacitors can be used to separate the different frequency components of the audio signal and direct them to the appropriate speakers. Their low dielectric loss ensures that the audio signal is transmitted with minimal distortion.
• Motor Control Circuits: In motor control applications, Cbb21 capacitors are used for starting and running the motors. They help to create a phase shift in the electrical current, which is necessary for the motor to start rotating. For example, in a single - phase induction motor, a Cbb21 capacitor can be used in the starting winding to provide the necessary phase shift.

Different Voltage Ratings

Cbb21 capacitors are available in different voltage ratings to suit various applications. Some of the common voltage ratings include 160V, 250V, and 400V.

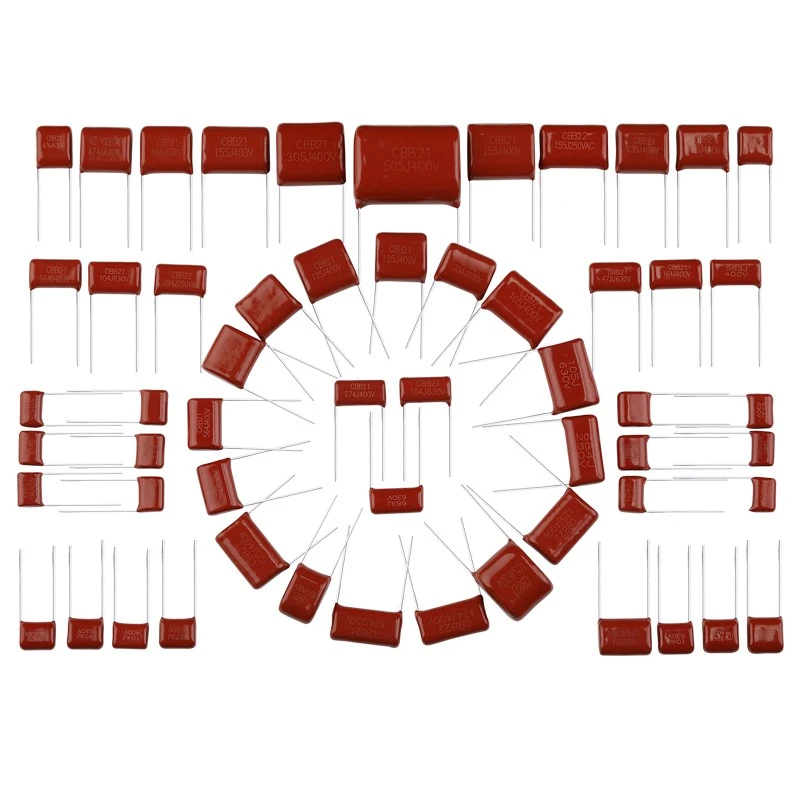

The CBB21-Film Capacitor 160V is suitable for applications where the voltage requirements are relatively low. It can be used in low - voltage power supplies, small - scale electronic devices, and some consumer electronics.

The CBB21-Film Capacitor 250V is a more versatile option that can be used in a wider range of applications. It is commonly used in household appliances, lighting fixtures, and some industrial control circuits.

The 335j 400v Capacitor with a higher voltage rating of 400V is designed for applications where higher voltages are involved. It can be used in power distribution systems, high - voltage motor control circuits, and some specialized electronic equipment.

Advantages of Cbb21 Capacitors

There are several advantages to using Cbb21 capacitors in electronic circuits:

• High Reliability: Due to their robust construction and the use of high - quality materials, Cbb21 capacitors have a long service life and are less likely to fail compared to other types of capacitors.
• Low Dielectric Loss: As mentioned earlier, the low dielectric loss of the polypropylene film ensures high efficiency and low heat generation, which is beneficial for the overall performance of the circuit.
• Self - Healing Property: One of the unique features of metalized film capacitors like Cbb21 is their self - healing property. If a small puncture occurs in the dielectric due to a voltage spike or other factors, the metalized layer around the puncture will vaporize, isolating the damaged area and preventing a complete breakdown of the capacitor.

Contact for Procurement

If you are interested in purchasing Cbb21 capacitors for your electronic projects, we would be more than happy to assist you. Our company offers a wide range of Cbb21 capacitors with different capacitance values and voltage ratings to meet your specific requirements. We have a team of experts who can provide you with technical support and advice to ensure that you choose the right capacitor for your application.

Please feel free to contact us to start a procurement discussion. We look forward to working with you and helping you find the best Cbb21 capacitor solutions for your needs.

References

• "Capacitor Handbook" by CDE (Cornell Dubilier Electronics)
• "Electrical Engineering Fundamentals" by Charles K. Alexander and Matthew N. O. Sadiku
• Technical datasheets of Cbb21 capacitors from various manufacturers.
