Can CL21 - Film Capacitor 400V be used in automotive electronics?

As a supplier of CL21 - Film Capacitor 400V, I often get asked whether this type of capacitor can be used in automotive electronics. In this blog post, I'll explore the technical aspects, advantages, limitations, and real - world applications to provide a comprehensive answer.

Technical Specifications of CL21 - Film Capacitor 400V

The CL21 - Film Capacitor 400V is a metalized polyester film capacitor. Polyester film capacitors are known for their relatively high dielectric constant, which allows for a compact design while achieving a certain capacitance value. With a rated voltage of 400V, it can handle electrical potential differences up to this limit without significant breakdown risks under normal operating conditions.

The capacitance values of CL21 - Film Capacitors can vary widely, and they are often used in applications where stable capacitance over a range of frequencies and temperatures is required. The self - healing property of metalized polyester film capacitors is another significant advantage. If there is a momentary breakdown in the dielectric, the metalized layer around the breakdown point evaporates, isolating the faulty area and restoring the capacitor's functionality.

Requirements in Automotive Electronics

Automotive electronics operate in a harsh environment. They are exposed to wide temperature variations, from extremely cold winter temperatures to the high heat under the hood. Vibration, shock, and electrical noise are also common challenges. Moreover, automotive systems demand high reliability and long - term stability to ensure the safety and proper functioning of the vehicle.

For example, in engine control units (ECUs), capacitors are used for filtering, decoupling, and energy storage. These applications require capacitors that can withstand high - frequency electrical signals and maintain their performance over a long service life. In safety - critical systems such as airbag controllers and anti - lock braking systems (ABS), the reliability of components is of utmost importance.

Advantages of Using CL21 - Film Capacitor 400V in Automotive Electronics

Temperature Stability

Although automotive environments have wide temperature ranges, the CL21 - Film Capacitor 400V can maintain relatively stable capacitance values within a certain temperature window. The polyester film dielectric has a predictable temperature coefficient of capacitance, which means that engineers can design circuits to compensate for any minor changes in capacitance due to temperature variations.

Self - Healing Property

As mentioned earlier, the self - healing ability of CL21 - Film Capacitors is a great advantage in automotive applications. In a high - vibration and shock environment, there is a risk of momentary electrical breakdowns. The self - healing mechanism ensures that the capacitor can continue to function properly, reducing the likelihood of system failures.

Cost - Effectiveness

Compared to some other types of high - performance capacitors, CL21 - Film Capacitor 400V offers a good balance between cost and performance. For non - critical automotive applications where extremely high precision or ultra - wide temperature ranges are not required, CL21 - Film Capacitors can be a cost - effective solution.

Limitations

Temperature Range

While the CL21 - Film Capacitor 400V has a certain level of temperature stability, its operating temperature range may not be sufficient for all automotive applications. Some under - hood applications can experience temperatures well above 125°C, and the performance of polyester film capacitors may degrade at such high temperatures.

High - Frequency Performance

In high - frequency automotive applications, such as in advanced driver - assistance systems (ADAS) that use radar or high - speed communication interfaces, the CL21 - Film Capacitor 400V may not have the best high - frequency characteristics. The equivalent series resistance (ESR) and equivalent series inductance (ESL) of these capacitors can limit their performance at very high frequencies.

Real - World Applications in Automotive Electronics

Despite the limitations, the CL21 - Film Capacitor 400V can still find a place in automotive electronics. In less demanding applications such as interior lighting systems, radio units, and some secondary power supply circuits, they can be used effectively.

For example, in a car's interior lighting system, CL21 - Film Capacitors can be used for filtering the power supply to provide a stable voltage to the LEDs. The relatively stable capacitance and the self - healing property ensure that the lighting system operates smoothly without flickering or sudden shutdowns.

Comparison with Other Capacitor Types

There are other capacitor types used in automotive electronics, such as ceramic capacitors and electrolytic capacitors. Ceramic capacitors offer high capacitance density and excellent high - frequency performance, making them suitable for high - speed circuits. However, they may not have the same self - healing property as CL21 - Film Capacitors.

Electrolytic capacitors, on the other hand, can provide high capacitance values but are more prone to drying out over time, especially at high temperatures. They also have a relatively short lifespan compared to CL21 - Film Capacitors.

Related Products

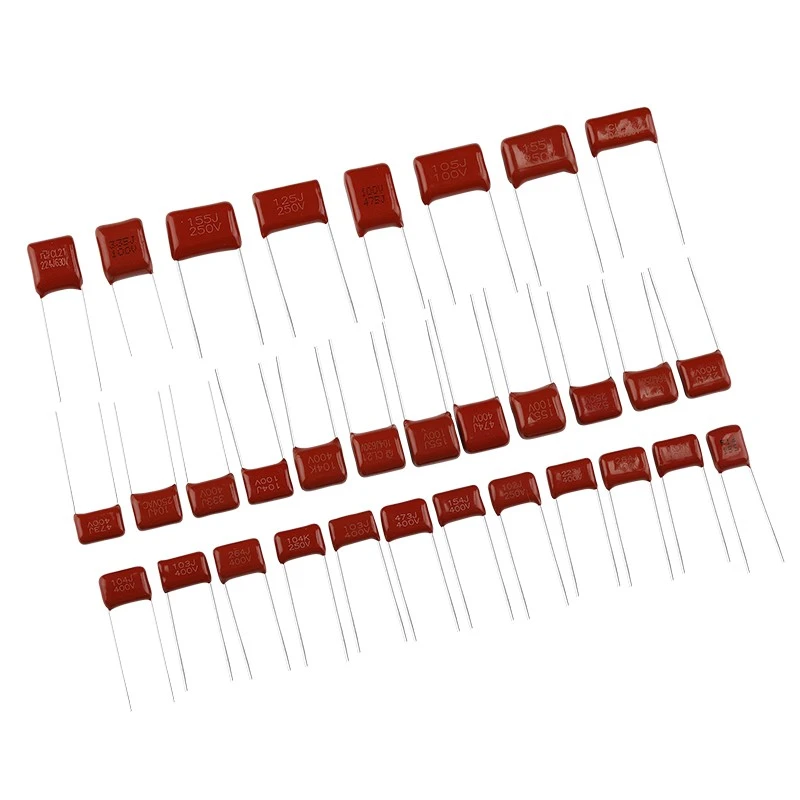

If you are looking for different voltage ratings or capacitance values, we also offer Film Capacitor 103J250V, 2.2 Uf Polyester Capacitor, and CL21 - Film Capacitor 630V. These products can meet a wider range of application requirements in automotive and other electronics fields.

Conclusion

In conclusion, the CL21 - Film Capacitor 400V can be used in automotive electronics, but its suitability depends on the specific application requirements. For less demanding applications where cost - effectiveness, temperature stability within a reasonable range, and self - healing properties are important, it is a viable option. However, for high - temperature, high - frequency, or safety - critical applications, other capacitor types may be more appropriate.

If you are interested in our CL21 - Film Capacitor 400V or any of our related products, please feel free to contact us for further details and to discuss your procurement needs. We are committed to providing high - quality products and excellent customer service to meet your specific requirements.

References

• "Capacitor Handbook" by a well - known capacitor manufacturer.
• Technical papers on automotive electronics components from industry conferences.
• Research articles on the performance of polyester film capacitors in different environments.
