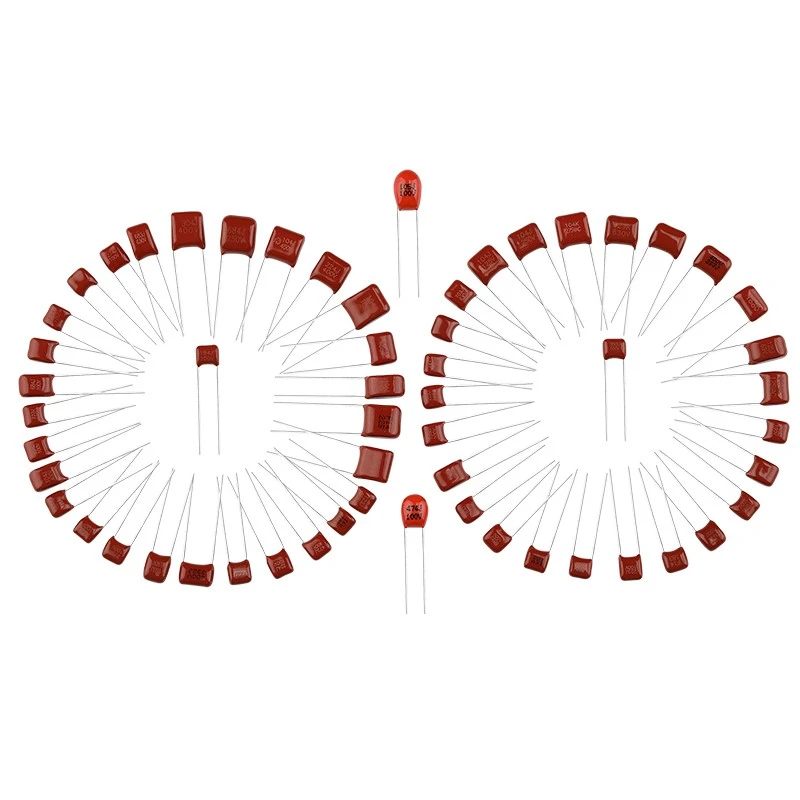

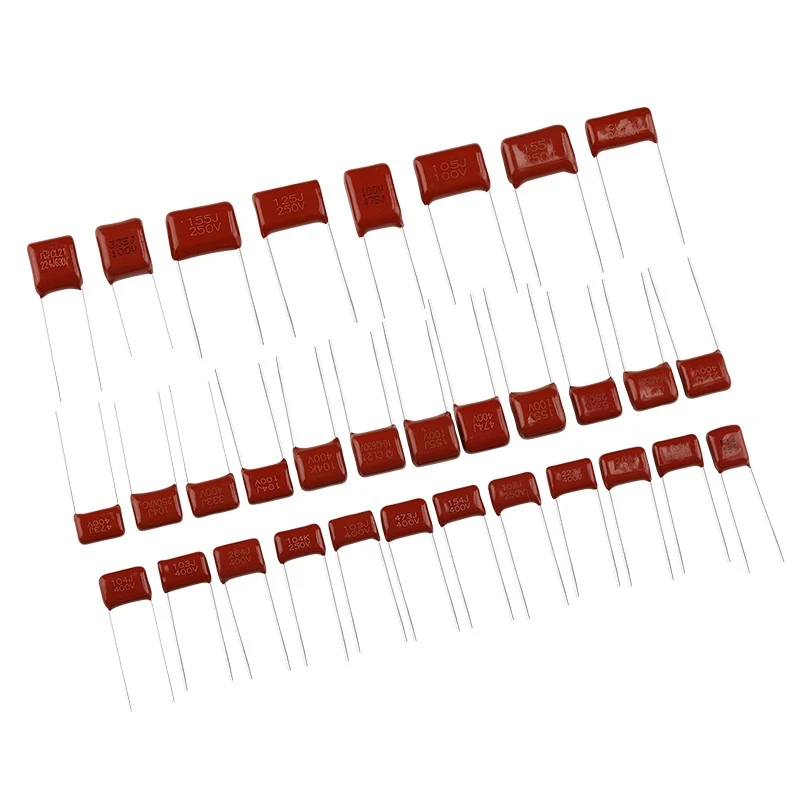

CL21-Film Capacitor 100V
CL21-Film Capacitor (MCF),Metallized polyester film as the medium, metal evaporation layer as the electrode using non-inductive winding to form a flat columnar structure. Main features: good consistency in appearance, large capacity, small size, low loss and high insulation, good self-healing, with a long time. Suitable for DC and VHF signal filtering, noise reduction.
- Product Introduction
CL21-Film Capacitor (MCF),Metallized polyester film as the medium, metal evaporation layer as the electrode using non-inductive winding to form a flat columnar structure. Main features: good consistency in appearance, large capacity, small size, low loss and high insulation, good self-healing, with a long time. Suitable for DC and VHF signal filtering, noise reduction.
Features
- Metallized polyester film, wide capacitance range, small size and light weight.
- High voltage resistance, high temperature wax sealed, flame retardant epoxypowder coating.
- Low noise.
- Moisture-proof, flame retardant.
- Low dissipation factor.
- Good self-healing property, good stability and reliability.
|
SPECIFICATIONS |
|
|
Climatic Category |
40/100/21 |
|
Rated Voltage |
100V, 250V, 400V |
|
Capacitance Range |
0.001Μf ~6.8μF |
|
Capacitance Tolerance |
±5%(J), ±10%(K) |
|
Voltage Proof |
1.6UR |
|
Insulation resistance |
≥30000MΩ, CR≤0.33μF (20℃, 1min) ≥10000S, CR>0.33μF (20℃, 1min) |
|
Tangent of loss angle |
≤0.008 % (20℃, 1KHZ) |
DRAWING: (mm)
Advantage
- Strict quality control: IATF 16949 automotive grade certification, full inspection of voltage resistance, ESR, and life span for each batch of products.
- Fully automated production line: Integration of intelligent equipment to improve efficiency and reduce human error.
- Excellent high temperature/high humidity performance: the products have passed the harsh environmental test of 85℃/85%RH, adapting to extreme working conditions.
Application Scenario
- UPS uninterruptible power supply (input/output filtering)
- Electric welding machine (high-frequency resonant circuit)
- Laser cutting power supply (pulse energy storage)
- PLC control system (signal isolation and filtering)
- Industrial robots (servo motor drive circuit)
