Best Polypropylene Capacitors for Audio

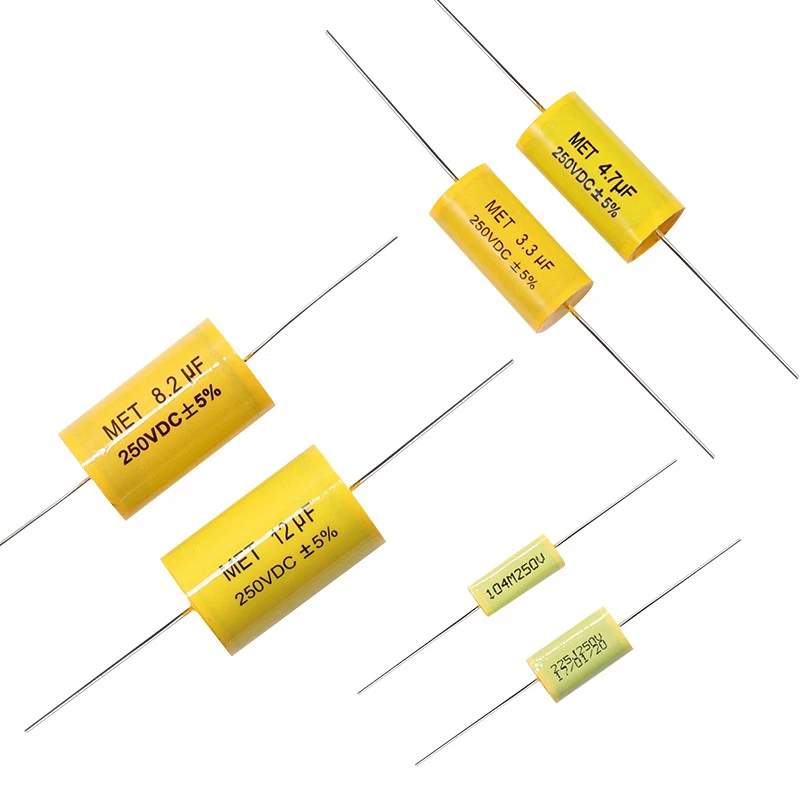

CL20 capacitor (MEF), made of metallized polyester film, the lead wire is axially led out, wrapped with high temperature tape, epoxy potting at both ends, the shape is oblate or cylindrical, low noise.

Product Introduction

CL20 capacitor (MEF), made of metallized polyester film, the lead wire is axially led out, wrapped with high temperature tape, epoxy potting at both ends, the shape is oblate or cylindrical, low noise.
Widely used in low noise coupling circuits such as audio and power supply.

Features

Metallized polyester film, axial lead, coated with high temperature adhesive tape, the epoxy potting.
Flat circular or cylindrical, low noise.
Low dissipation factor.
Good self-healing property, good stability and reliability.

SPECIFICATIONS
Climatic Category	40/100/21
Rated Voltage	100V, 250V, 400V, 630V
Capacitance Range	0.001Μf ~6.8μF
Capacitance Tolerance	±5%(J), ±10%(K)
Voltage Proof	1.6U_R
Insulation resistance	≥3000MΩ, CR≤0.33μF(20℃, 1min) ≥10000S, CR>0.33μF (20℃, 1min)
Tangent of loss angle	≤0.008 %(23℃, 1KHZ)

DRAWING: (mm)

Advantage

Advanced material technology: High purity metallized film material is used to ensure low loss, high withstand voltage and long life of the capacitors.
Diversified product lines: Covering a full range of film capacitors (e.g. CBB, MKP, power capacitors, etc.) to meet the needs of industry, new energy, automotive electronics and other fields.
High-precision manufacturing: Using automated winding machines and vacuum gold spraying process, we realize ±1% tolerance of capacitance value and industry-leading performance consistency.
Excellent high temperature/high humidity performance: the products have passed the harsh environmental test of 85℃/85%RH, adapting to extreme working conditions.

Application Scenario

Photovoltaic inverter (DC-Link capacitor, filtering)
Wind power converter (DC bus support)
Energy Storage System (ESS) (buffer capacitor for battery management system)
Charging pile modules (power factor correction PFC circuits)
Hydrogen fuel cell systems (DC/DC converter filtering)
Smart grid reactive power compensation devices (SVG/APF harmonic management)

FAQ

Q: How does the thickness of the metallized film affect performance?

A: The thinner the film, the higher the capacity, but the withstanding voltage may be reduced.

Q: How to ensure the voltage withstand performance of capacitors?

A: Through material selection, process control and 100% voltage withstand test.

Q: What is the purpose of aging test?

A: To screen for early failure products and ensure factory stability.

Q: What are the environmentally friendly processes?

A: Use of lead-free soldering, RoHS/REACH compliant materials.
